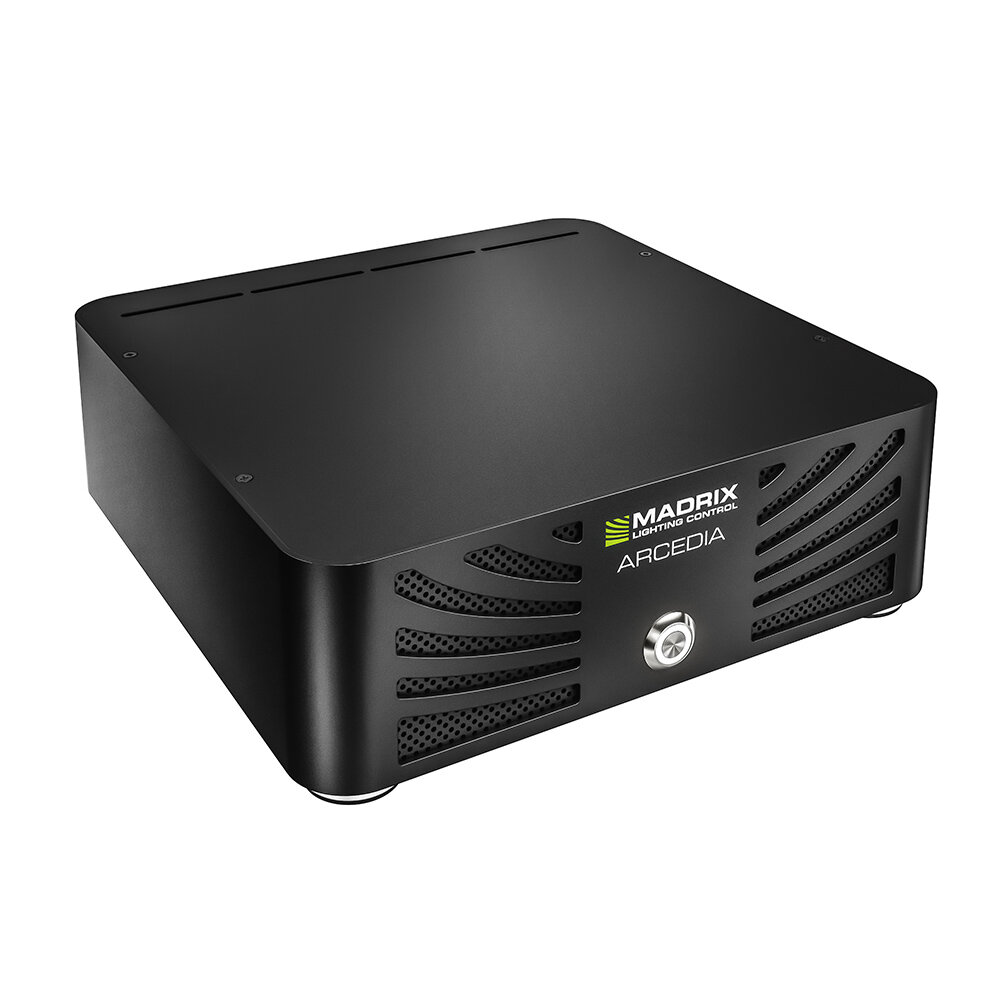

MADRIX ARCEDIA is the professional live-rendering system to drive the stunning pixel mapping of your LED installation with MADRIX 5 Software in unique 2D or real 3D.
ARCEDIA is a live rendering system designed to manage LED installations of any scale with MADRIX 5 software, offering advanced 2D pixel mapping and true 3D environments. It is a complete, ready-to-use turnkey solution that combines high-performance hardware and pre-activated software licenses, ensuring an immediate and reliable workflow for creative, architectural, and entertainment applications.
With its compact yet extremely powerful hardware platform, ARCEDIA offers workstation-grade graphics, high-speed ECC memory, 1 TB NVMe storage, and an active cooling system certified for 24/7 operation. The MADRIX 5 arcedia, MADRIX RADAR core, and big data licenses are included and pre-configured, allowing you to manage up to 1.5 million pixels and 135,168 DMX channels with advanced RDM monitoring. The system comes pre-configured with Windows 11 Pro, drivers, codecs, and all the necessary MADRIX software, dramatically reducing setup time.
ARCEDIA is designed for maximum operational flexibility: it supports multiple ultra-high-resolution outputs via a dedicated GPU, includes network connectivity up to 2.5 Gbps, and enables remote control via VPN or remote desktop applications. Its compact size allows for rack installation (up to two units in 1.5U) or via a VESA mount, making it ideal for permanent installations and touring
What’s in the box:
-
- MADRIX ARCEDIA
- Power supply
- VESA mount bracket (75 x 75 / 100 x 100 mm)
- Technical manual
